Engineering Edmonton's Landmarks: The Advanced Process of Pylon Sign Installation

Pylon sign installation in Edmonton is a complex feat! Explore the deep engineering, strict permitting, and specialized techniques employed by experts to create safe, durable, and iconic commercial landmarks.

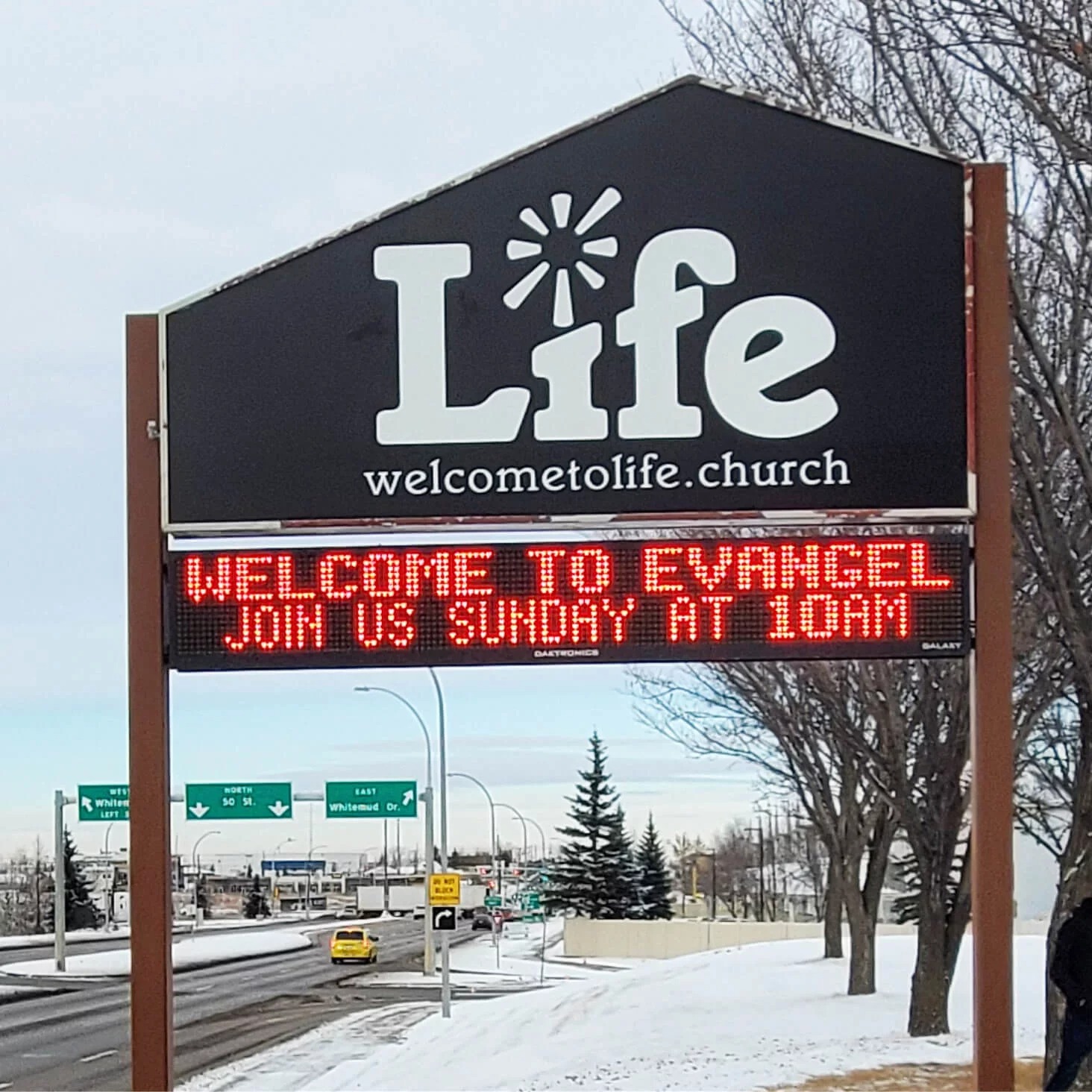

Beyond simply being tall, pylon signs Edmonton stand as true commercial landmarks, silently guiding countless visitors and cementing brand identities across the city. Their impressive stature, however, belies a deeply complex and highly engineered process of installation. It’s a venture that requires not just a creative vision, but meticulous planning, advanced structural calculations, adherence to stringent regulations, and the precise execution of a skilled team. This blog post delves into the advanced methodologies and engineering excellence inherent in modern pylon sign installation, showcasing how Edmonton’s top sign companies ensure these towering structures are not just visible, but are built as safe, durable, and iconic symbols for decades.

The Unseen Engineering Behind Every Edmonton Pylon Sign

A pylon sign’s ability to withstand Edmonton’s diverse climate – from strong prairie winds to heavy snow loads and freeze-thaw cycles – is a testament to robust engineering during installation.

Geotechnical Analysis and Foundation Design: Before any digging, a site-specific geotechnical study is often conducted to understand Edmonton’s soil composition (e.g., clay, sand, bedrock). This data is critical for designing the appropriate foundation, whether it’s a deep drilled shaft (caisson) or a spread footing. The foundation must extend below the frost line to prevent movement due to freezing and thawing.
Wind Load Engineering (ASCE 7 Standard): This is paramount for tall signs. Structural engineers use comprehensive calculations (often referencing the ASCE 7 Minimum Design Loads for Buildings and Other Structures standard, adapted to Canadian codes) to determine the maximum wind pressure the sign will face. This dictates the thickness and grade of steel for the internal structure, the size of the concrete foundation, and the type of connections.
Material Science for Longevity: Components are chosen for their resilience to Edmonton’s temperature extremes and corrosion. This includes:
- Hot-Dipped Galvanized Steel: For the internal support structure, providing superior rust protection.
- High-Impact Polycarbonate or Acrylic: For sign faces, resistant to shattering from impacts or extreme cold.
- Marine-Grade Aluminum: For cabinet fabrication, offering strength and excellent corrosion resistance.
- Energy-Efficient LED Lighting: Chosen for optimal performance in cold weather and significantly reduced energy consumption and maintenance needs.
Drainage and Ventilation Systems: Internal design accounts for condensation and prevents water pooling within the sign cabinet. Proper ventilation ensures heat dissipation from LED modules, maximizing their lifespan.

Navigating Edmonton’s Permitting and Compliance Landscape

The administrative phase of pylon sign installation in Edmonton is as rigorous as the physical work. Expert sign companies are specialists in navigating these bylaws:

City of Edmonton Development and Building Permits: Pylon signs require both a Development Permit (ensuring compliance with zoning bylaws like size, height, and setback from property lines, which vary significantly by zone) and a Building Permit (ensuring structural and electrical safety according to the Alberta Building Code and Canadian Electrical Code).
Bylaw Interpretation and Variance Applications: Sometimes, a desired sign may exceed standard bylaws. Experienced sign companies can guide clients through the process of applying for variances or rezonings, presenting a compelling case to city planners.
Traffic Safety Reviews: For signs near major intersections or highways, the City of Edmonton’s transportation department may review the sign’s placement to ensure it does not create visual obstructions or distractions for drivers.
Underground Utility Locates: Before excavation, precise mapping of all underground utilities (power, gas, water, fibre optics) is mandatory through services like Alberta One-Call (Call Before You Dig) to prevent catastrophic damage.

Precision Execution: The Multi-Stage Installation Process

The physical installation of pylon signs Edmonton is a highly specialized operation, demanding precision and adherence to strict safety protocols:

Foundation Excavation and Rebar Caging: Utilizing heavy augers and excavators, the foundation is precisely dug. Complex rebar cages, designed by engineers for specific load requirements, are meticulously assembled and lowered into the excavation.
Anchor Bolt Installation and Surveying: Critical for alignment, the anchor bolts are accurately placed within the rebar cage before concrete pouring. Professional surveying equipment (e.g., total stations, lasers) is used to ensure the base plate for the pylon is perfectly level and oriented.
High-Strength Concrete Pour: Specialty concrete mixes, often designed for specific weather conditions or rapid curing, are poured. Concrete strength tests are conducted to ensure it meets the structural requirements before any further loads are applied.
Structural Erection with Cranes: The pre-fabricated steel pylon structure (or individual poles) is hoisted by high-capacity cranes. Certified riggers and crane operators work in tandem, using precise movements to align the structure with the anchor bolts. High-strength bolts are torqued to specific values.
Electrical Tie-in and Grounding: Licensed electricians connect the sign’s internal illumination to the power source, ensuring all wiring and components meet the Canadian Electrical Code. Comprehensive grounding systems are installed to protect against electrical surges and lightning.
Sign Cabinet and Face Installation: The fabricated sign cabinet(s) and their graphic faces are carefully lifted and mounted. Attention to detail ensures tight seams, flush mounting, and perfectly aligned graphics.
Cladding and Architectural Finish: Decorative cladding (e.g., aluminum composite panels, stone, brick veneers) is meticulously applied to the pylon structure, integrating the sign aesthetically with its surroundings and reflecting the client’s brand.
Post-Installation Inspection: A final review ensures structural integrity, electrical functionality, aesthetic quality, and adherence to all permit requirements.

The Lasting Legacy of Expert Pylon Sign Installation

The longevity and effectiveness of a pylon sign directly correlate with the expertise applied during its installation. Investing in a leading pylon signs Edmonton company ensures:

Superior Safety: Mitigates risks from structural failure, especially crucial in a city with variable weather conditions.
Maximum Durability: Built to withstand decades of Edmonton’s climate, reducing the need for costly early repairs or replacements.
Uninterrupted Performance: Consistent illumination and structural integrity mean the sign continuously functions as a powerful advertising asset.
Full Legal Compliance: Avoids fines, forced removal, and legal disputes, ensuring a smooth operational experience.
Enhanced Brand Perception: A professionally installed pylon sign conveys reliability, strength, and professionalism, strengthening your brand’s image.

Conclusion

A pylon sign is an enduring symbol of a business’s ambition and commitment within Edmonton. Its towering presence is a direct result of sophisticated engineering, rigorous regulatory adherence, and the precise, skilled execution inherent in advanced pylon sign installation. By partnering with local experts who command these complex disciplines, businesses can ensure their pylon sign not only defines their location but stands as a safe, iconic, and invaluable landmark, contributing to the visual identity and economic vitality of the “City of Champions” for generations.
