In today’s fast-moving construction landscape across the United States, electrical systems are growing more complex with every new project. High-rise commercial buildings, data centers, healthcare facilities, and industrial plants all demand tight coordination between electrical, mechanical, and plumbing trades, often within constrained floor-to-ceiling clearances.

This is where Electrical VDC coordination becomes a game-changer. Virtual Design and Construction (VDC) gives electrical contractors, MEP engineers, and BIM coordinators the tools to detect and resolve conflicts before a single conduit is installed in the field. The result is fewer change orders, reduced rework costs, and a smoother construction schedule for every stakeholder involved.

This article walks through the most effective techniques for achieving clash-free execution through structured electrical coordination workflows, practical BIM strategies, and team-level coordination processes.

Why Electrical Systems Are the Hardest to Coordinate?

Electrical systems present unique coordination challenges compared to other MEP trades.

Dense Routing Zones

Conduit runs, cable trays, bus ducts, and wire management systems often compete for the same ceiling plenums and shaft spaces that HVAC ductwork and plumbing mains already occupy. Without 3D modeling, these conflicts are invisible until crews are already in the field.

Code-Driven Clearances

The National Electrical Code (NEC) mandates specific clearances around electrical panels, transformers, switchgear, and junction boxes. These clearances must be accounted for in the coordination model, not just the physical equipment footprint.

Last-Mile Routing Complexity

Large feeder conduits are often straightforward to model, but the coordination challenge multiplies when hundreds of branch circuit conduits, homerun runs, and low-voltage pathways need individual routing decisions across dozens of floors.

Core Electrical VDC Coordination Techniques

1. Develop a Fully Detailed Electrical BIM Model Early

The foundation of a successful coordination process is a high-fidelity electrical model. This means going beyond simple single-line diagrams and creating accurate 3D representations of all major components including conduit, cable tray, panel boards, junction boxes, pull boxes, switchgear, and transformers.

BIM for electrical contractors provides the most value when the model is built in parallel with mechanical and plumbing models from the start of design development, not added at the end as a record model. Early modeling allows teams to identify routing zones, establish elevation priorities, and define coordination sequences before conflicts become field problems.

2. Establish a Coordination Zone Strategy

Before running BIM clash detection, the coordination team should define spatial zones for each trade. Common practice in US projects is to assign elevation bands in ceiling plenums, for example, mechanical ductwork above a defined datum, plumbing at mid-level, and electrical below. These zone assignments should be documented in a coordination matrix and shared with all trade partners.

This approach reduces the total number of raw clashes generated and focuses the coordination effort on genuine routing conflicts rather than administrative overlaps.

3. Run Structured BIM Clash Detection Workflows

BIM clash detection is the technical engine behind VDC coordination. Tools like Autodesk Navisworks allow coordinators to run clash tests between electrical models and all other trade models, checking for hard clashes, soft clashes (clearance violations), and workflow clashes related to construction sequencing.

A structured clash detection workflow for electrical systems should include

• Hard clash runs between conduit and ductwork, structure, and piping
• Clearance clash runs around switchgear and panel boards using the code-required working space envelopes
• Cable tray interference checks with hangers, beams, and lateral bracing
• Weekly or bi-weekly clash review meetings with all trade partners

Clash reports should be assigned to responsible parties, tracked to resolution, and closed out before issuing coordination drawings for fabrication.

4. Use Coordination Drawings and Spool Sheets for Field Execution

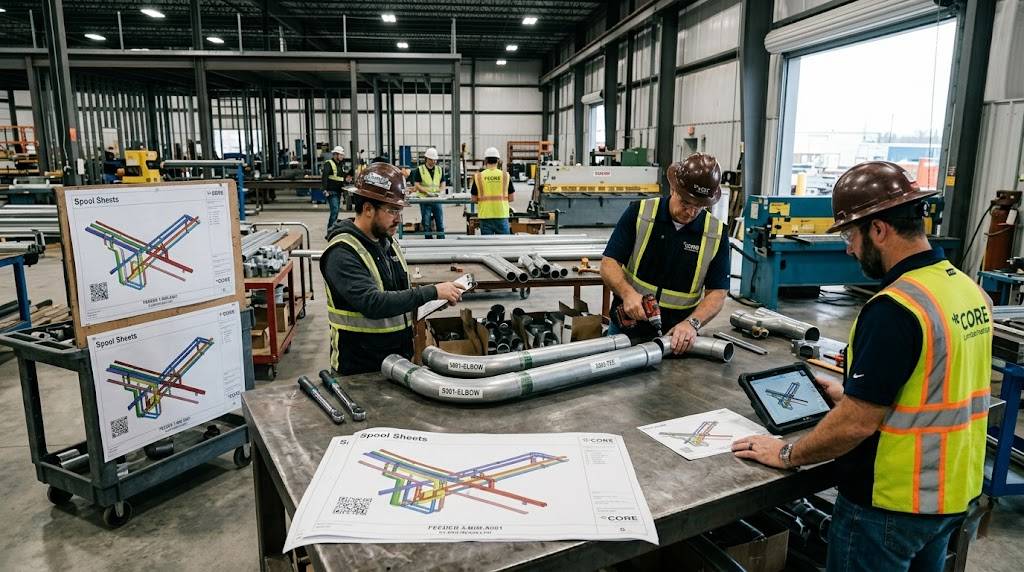

A coordinated model only delivers value when it translates into actionable field documents. Coordination drawings, typically plan views and sections at key locations, communicate the agreed routing to field crews. For prefabrication of conduit assemblies, spool sheets derived from the BIM model provide accurate dimensions and bend data.

The MEP coordination process links the digital model directly to prefabrication, reducing field measurement errors and supporting lean installation workflows.

5. Integrate Electrical and Structural Models for Sleeve and Opening Coordination

One of the most overlooked areas of electrical VDC coordination is the interface with structural systems. Conduit sleeves, cable tray openings, and bus duct penetrations through concrete walls, floors, and fire-rated assemblies must be coordinated with the structural engineer and concrete contractor before pours and wall installations.

Using the coordinated electrical model to generate a sleeve and opening schedule, and sharing it with the GC’s VDC team early, eliminates costly core drilling, patching, and fire-stopping rework.

Cross-Trade Coordination Best Practices

Effective electrical VDC coordination is not just a technical exercise. It requires structured team collaboration.

Weekly Coordination Meetings should include representation from all MEP subcontractors, the GC’s VDC team, and the design team as needed. Meeting minutes should document all clash resolutions and routing decisions.

Model Submission Standards define the LOD (Level of Development) required from each trade at each project phase. Electrical models for coordination should meet LOD 300 or higher, with accurate geometry and system data attached to elements.

A Single Federated Model maintained by the GC’s VDC manager ensures all trades are working from the same reference. Version control protocols prevent teams from coordinating against outdated model files.

Issue Tracking Platforms such as Autodesk BIM 360 or Procore allow clash issues to be assigned, tracked, and documented throughout the coordination process.

Measuring Success in Electrical VDC Coordination

A project team can track the effectiveness of its coordination effort through measurable outcomes

• Total number of clashes identified and resolved before construction
• Reduction in field RFIs related to electrical routing conflicts
• Prefabrication percentage achieved for conduit and cable tray assemblies
• Schedule adherence for electrical rough-in milestones
• Change order volume attributable to coordination failures

Projects that invest in thorough VDC coordination consistently report significant reductions in electrical rework costs and improved first-time quality during inspections.

Conclusion

Electrical VDC coordination is no longer optional on complex US construction projects. It is a standard expectation from owners, general contractors, and design teams. By building detailed models early, establishing trade zone strategies, running disciplined BIM clash detection workflows, and translating coordinated models into field-ready documents, electrical contractors and MEP teams can achieve clash-free execution with predictable results.

Teams that integrate VDC thinking into their electrical scopes from project kickoff will find fewer surprises in the field, stronger relationships with trade partners, and a competitive advantage that shows up in every project delivery metric.
